Meanwell flagship lines in detail
Six representative Meanwell SMPS series — the carousel auto-advances every 6 seconds, or use the controls to navigate manually. Each slide shows a real catalogue page with full model breakdown and specifications.

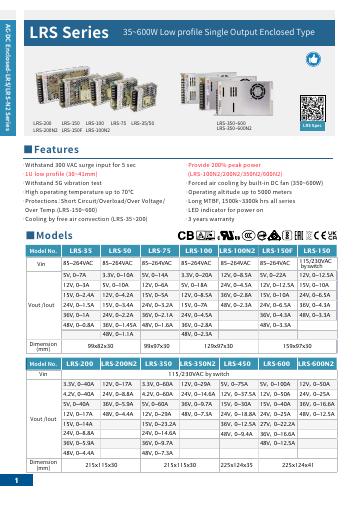

LRS Series
35–600 W · Slim 30 mm ProfileThe most widely-deployed enclosed switching supply in the global market — slim 30 mm low profile, universal 85–264 VAC input, single-output DC. Standard choice for industrial control cabinets, security systems and LED constant-voltage applications.
| Power Range | 35·50·75·100·150·200·350·450·600 W |
| AC Input | 85–264 VAC universal · 47–63 Hz |
| DC Output Options | 5 V · 12 V · 15 V · 24 V · 36 V · 48 V |
| Cooling | Free-air convection (≤350 W) · forced air (450 W +) |
| Approvals | UL · CUL · TÜV · CB · CE · CCC · BSMI · KC |
| Warranty | 3 years |

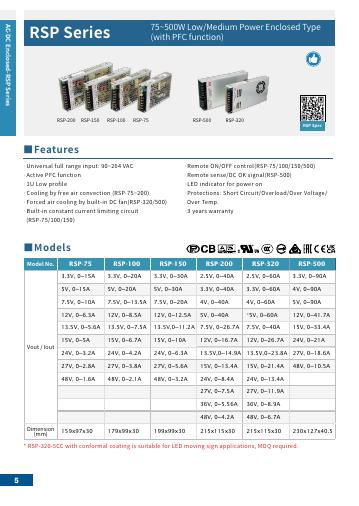

RSP Series
75–500 W · PFC ≥ 0.9575 W to 500 W enclosed PFC-corrected supplies — preferred for higher-current 24 V system rails (up to 21 A on RSP-500). 1 U low-profile chassis, built-in remote sense and DC-OK signal on RSP-150/300/500. Suitable for LED moving-sign integration with conformal coating option.
| Power Range | 75·100·150·200·320·500 W |
| AC Input | 90–264 VAC PFC ≥ 0.95 |
| Output Options | 3.3 V · 5 V · 7.5 V · 12 V · 15 V · 24 V · 27 V · 48 V |
| Built-in Functions | Remote sense · Remote ON/OFF · DC-OK signal (≥150 W) |
| Coating Option | RSP-320-SCC conformal coating for LED signage |
| Warranty | 3 years |

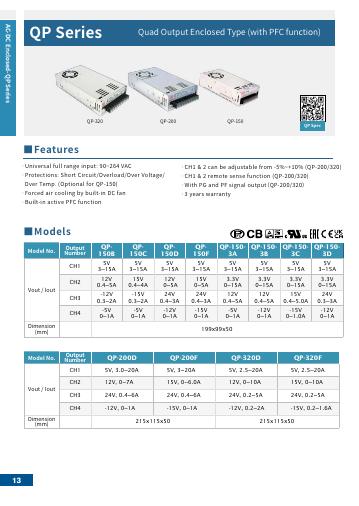

QP Series
Quad Output · 150–320 WQuad-output enclosed type with PFC function — four independent regulated rails in a single supply. Ideal for industrial control systems and equipment that need multiple voltage rails (typically +5 V, +12 V, +24 V, −12 V) without stacking multiple supplies.
| Output Channels | 4 independent regulated rails |
| Power Range | 150 W · 200 W · 320 W |
| AC Input | 90–264 VAC universal · with PFC |
| CH1 / CH2 | Adjustable −5% / +10% on QP-200/320 |
| Built-in Functions | Remote ON/OFF · PG & PF signal output (QP-200/320) |
| Warranty | 3 years |

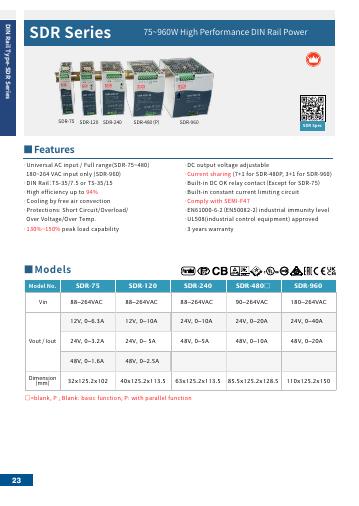

SDR Series
75–960 W · High-Performance DINHigh-performance DIN-rail mountable supplies for industrial automation panels and distribution boards — efficiency up to 94%, 130–150% peak load capability, current sharing for parallel operation. EN 60204-1 (industrial control) and UL508 compliant.
| Power Range | 75 · 120 · 240 · 480 · 960 W |
| Mounting | TS-35/7.5 or TS-35/15 DIN rail |
| Efficiency | Up to 94% |
| Peak Load | 130–150% (configurable) |
| Current Sharing | 1+1 (SDR-480P) · 3+1 (SDR-960) |
| Standards | EN 60204-1 · UL508 · SEMI-F47 |

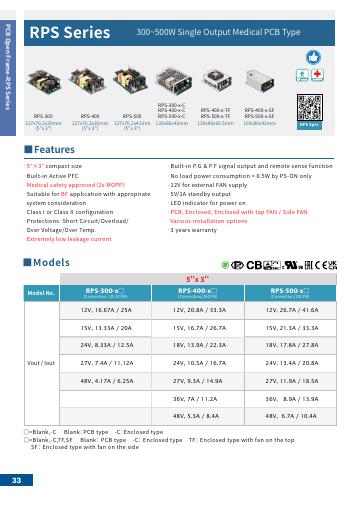

RPS Series
300–500 W · 2× MOPP MedicalSingle-output medical-grade PCB-type power supplies — 5"×3" compact, built-in active PFC with 2× MOPP (Means of Patient Protection) safety design. Suitable for medical equipment integration with appropriate system consideration.
| Power Range | 300 W · 400 W · 500 W |
| Form Factor | 5" × 3" compact open-frame PCB |
| Medical Compliance | 2× MOPP · Class B EMI · IEC 60601-1 referenced |
| Output Options | 12 V · 15 V · 24 V · 27 V · 36 V · 48 V |
| Active PFC | Built-in |
| Mechanical | Open frame · top-fan / side-fan / SF (no-fan) variants |

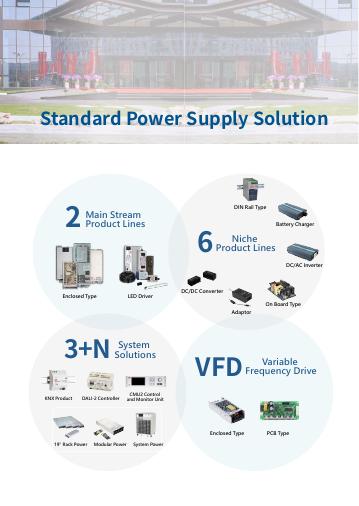

Full Meanwell Catalogue
2 Mainstream · 6 Niche · 3+N SystemsBeyond the featured lines, MOEMS supplies the complete Meanwell portfolio — DIN-rail, battery chargers, DC/DC converters, DC/AC inverters, adaptors, on-board PCB types, KNX building control, CMU-2 monitoring units, 19" rack power, modular system power and VFD enclosed/PCB types. Submit your line item or BOM for a quotation.
| Mainstream Types | Enclosed Type · LED Driver |
| Niche Lines | DIN Rail · Battery Charger · DC/DC · DC/AC Inverter · Adaptor · On-Board |
| System Solutions | KNX · CMU-2 · 19" Rack · Modular · System Power |
| VFD Drives | Enclosed Type · PCB Type |
| Documentation | Datasheets · 3D models · safety certificates · CB reports |
